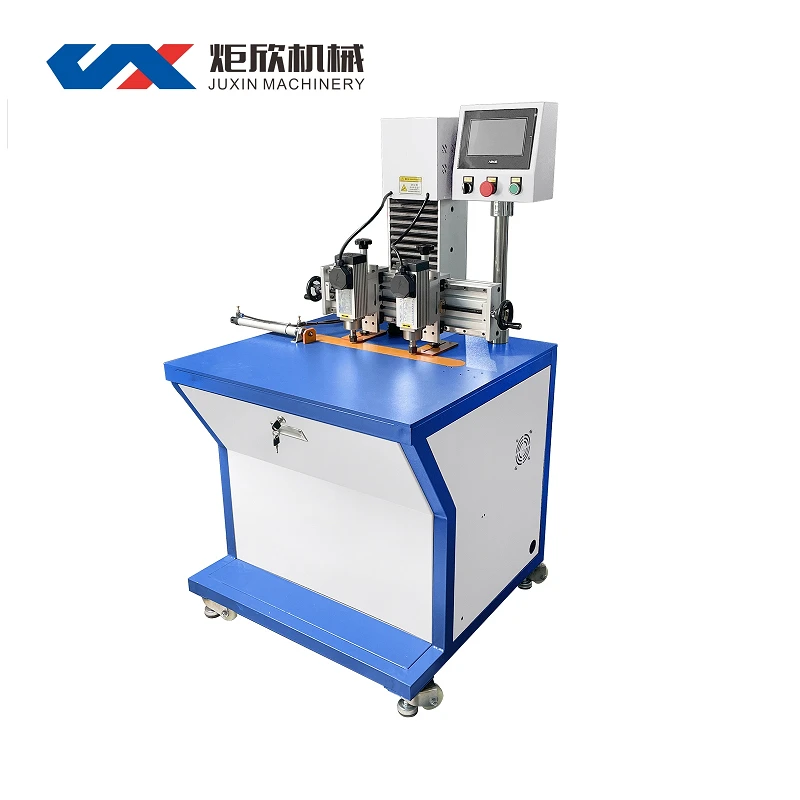

Board Drilling Machine
This machine is a device for processing and drilling cardboard before pasting magnets, such as a rigid box, book box, gift box, and hardcover box.
- Product Introduction
Machine Features
This machine is a device for processing and drilling cardboard before pasting magnets, such as a rigid box, book box, gift box, and hardcover box. This machine adopts imported Japanese Panasonic PLC, stepper motor and Taiwan Wenlun touch screen and frequency converter. It has simple operation, convenient maintenance, accurate drilling and high automation. Long life, durable, light weight and easy to move. Particularly suitable for a variety of high precision drilling. Convenient and fast, accurate alignment, drilling size and depth can be adjusted.
The Machine Main Parameters
|
Model |
JX-D500 |
|
Drill size |
φ8～φ21 mm |
|
Min drill distance |
80mm |
|
Max drill distance |
400mm |
|
Drill to the edge |
160mm |
|
Speed |
20pcs/min |
|
Power |
220v Single phase 2kw |
|
Weight |
150kg |
|
Dimension |
950*600*1500mm |
