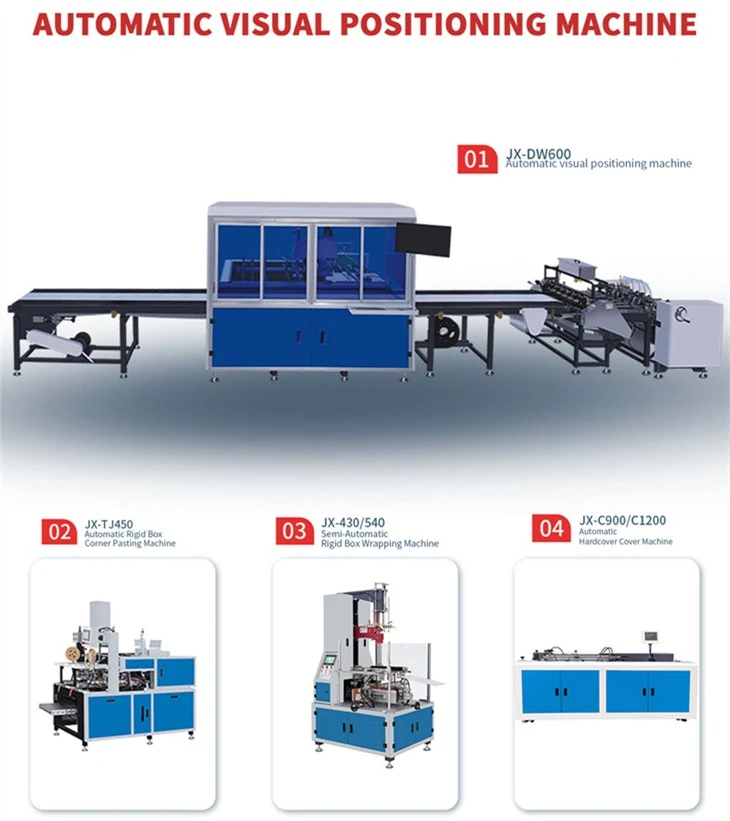

Rigid Box Visual Position Machine
The existing assembly line gluing machine is intelligently upgraded to realize "machine replacing labor". Decreasing While reducing the production cost, the product qualification rate has also been steadily improved to ensure the product quality.
- Product Introduction
Machine Features
The existing assembly line gluing machine is intelligently upgraded to realize "machine replacing labor". Decreasing While reducing the production cost, the product qualification rate has also been steadily improved to ensure the product quality.
1. With high cost performance, reduce equipment procurement costs for customers.
2. Increase production efficiency: automation can be realized.
3. High product compatibility: it can be added to the general Feida assembly line gluing machine in the existing market.
4. Labor saving.
5. Easy to transplant it can be transplanted to other production lines.
6. The tracking accuracy error is ±0.1mm, and the maximum production speed is 26 pieces/min.
7. The debugging is simple and easy to understand, and the product switching is convenient.
The Machine Main Parameters
|
Model |
JX-HK700 |
|
Gray board length |
30-960mm |
|
Gray board width |
20-460mm |
|
The min size of single gray board |
30*20mm |
|
The max size of single rigid box |
500×400×120mm |
|
The min size of single rigid box |
50×50×12mm |
|
The max size of double rigid box |
420×200×120mm |
|
The min size of double rigid box |
80×50×12mm |
|
Speed |
1-26pcs/min |
|
Accuracy |
±0.1mm |
|
Voltage |
380V/50HZ |
|
Power |
14KW |
|
Air pressure |
0.6-0.8MPa |
|
Weight |
7000KG |
